Kenwood Car Audio DMX9720XDS 10.1" HD Mechless Multimedia DAB+ DMX9720XDS
£999.95 Save £100.04  was:£1099.99
Click to Close

Fit it Yourself?

Everything you need to fit it yourself at home

DIY Kit
Only £30.00

With Steering Wheel Control
Only £50.00

5 Stars (4)

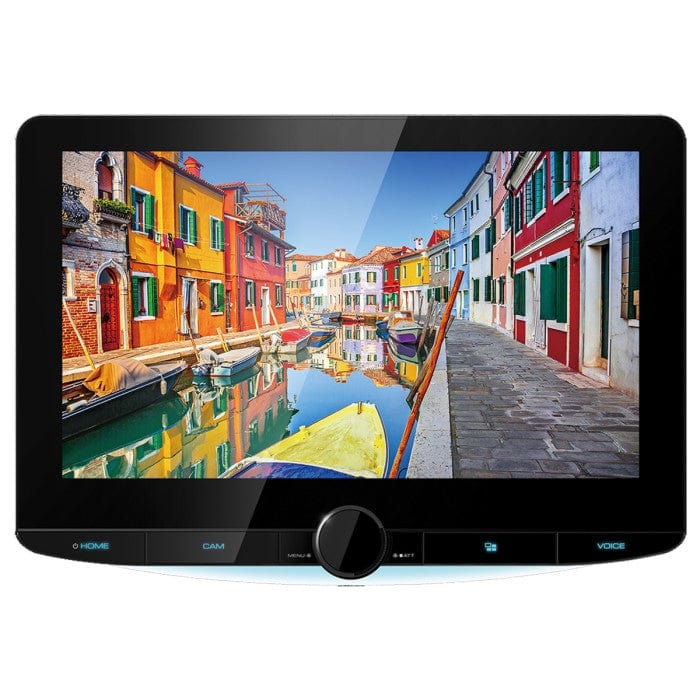

Kenwood Car Audio DMX9720XDS 10.1" HD Mechless Multimedia DAB+ Receiver with Advanced Smartphone Control

£999.95 Save £100.04 (9%)  was:£1099.99
5 Stars
4 Review(s) / write a review
Quickfind Code - 42414
Quick Summary:

A direct competitor to the Alpine Halo 9 and Pioneer Evo series. The DMX offers a massive 10.1" touchscreen. Features like 4 camera inputs, enhanced Apple Car Play and Android Auto connectivity and floating panel mechanism with 3-way position

Condition: New

£999.95
Save £100.04 (9%)
rrp: £1099.99
Pre Order: stock expected on: 31 December 2021
Buy Now

  • COVID-19 We are open online & shipping orders during the COVID-19 pandemic
  • Free Car Air Freshener with every order Free Car Air Freshener with every order
  • Next Day Delivery available on all orders before 5pm Next Day Delivery available on all orders before 5pm
  • Easy Returns Christmas returns extended until 7th January 2022



Click image to zoom


Key Features

10.1" HD Mechless Multimedia DAB+ Receiver with Advanced Smartphone Control - Kenwood Car Audio DMX9720XDS

Made for iPod Works for iPhone MP3 AM / FM Radio DAB Digital Radio Bluetooth handsfree USB Steering Wheel Control 3 Preout Multi Colour display Android Compatible Apple Car Play Wi-Fi FLAC Hi Res Audio Wireless Apple CarPlay Wireless Android Auto In-Dash Apple Car Play Android Auto
The Kenwood DMX9720XDS is a car audio marvel. The very real and very new 10.1' screen is 1280x720P which is featured on on the DNX9190DABS. Other features include DAB, Apple Car Play, Android Auto, WiFi, Hi Res Audio and 4 camera inputs.

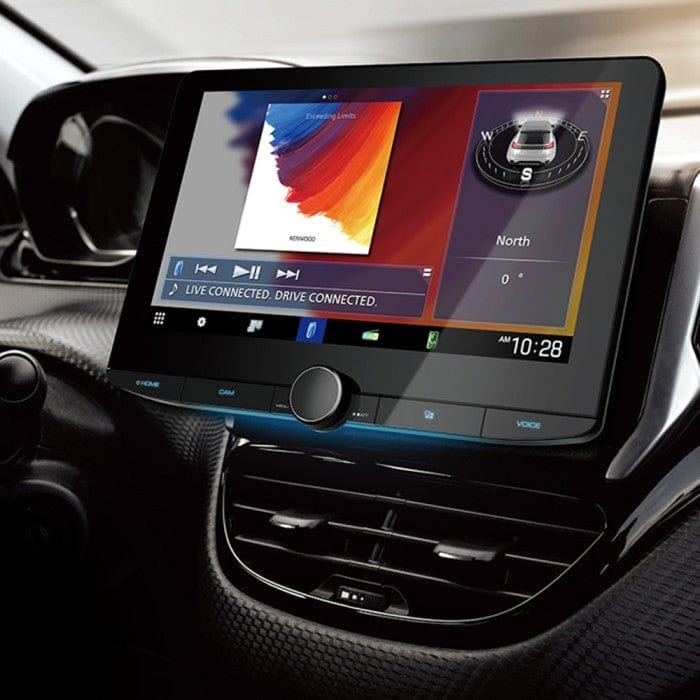

Floating Panel Mechanism with 3-way Position Adjustment

The robust floating mechanism generates less vibration even on a rough road. It can be installed regardless of the size of the cluster panel opening. In addition, it is possible to adjust the position of the display in the three following ways, so you can fit a large screen in more vehicles.

Powerful 10,1” HD Display

DMX9720XDS adopts a 10.1 inch HD display providing room for more information that is large and easy to comprehend with just a glance. The KENWOOD DMX9720XDS features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.

High-Resolution Audio Wireless

LDAC is an audio compression technology that enables High-Resolution Audio sources to be transmitted via Bluetooth. It is possible to transmit about 3 times the data amount compared to the conventional Bluetooth codec (SBC). High-Resolution Audio sources can be processed without down-converting them to lower frequencies and lower bit counts. With these features, unprecedented, high-quality audio is realised.

Digital Audio Broadcasting (DAB)

DAB is a digital radio technology for broadcasting radio stations, used in various countries in Europe. In comparison to traditional AM and FM radios, DAB delivers cleaner, crisper sound due to the noise reduction implemented. Furthermore an upgraded DAB+ was released in 2007, which features a higher audio quality and better reception.

Apple CarPlay via Wi-Fi & USB

Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, listen to music and access messages with just a word or a touch. With iOS 12.0 and higher, 3rd party navigation apps like Google Maps™ are also supported. Wireless connection is available on compatible iPhones.

Some features, applications and services are not available in every region. For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Android Auto via Wi-Fi & USB

Android Auto is a simple way to use your Android phone in the car. The KENWOOD receiver combine an intuitive voice controlled interface with a large touch screen and superior sound quality, allowing you to enjoy features including Google Maps and more. Wireless connection is available on compatible Android phones.

Some features, applications and services are not available in every region. For details, see: www.android.com/auto/

Wireless Mirroring for Android

Wireless Mirroring is a ground-breaking solution for seamlessly displaying and controlling your smartphone apps on the receiver large screen without cables or even a network connection. The feature is available on compatible Android phones

4 Camera Inputs

DMX9720XDS features 4 camera inputs which allow for the utmost in convenience, flexibility and safety. You can connect a KENWOOD dash cam (DRV-N520 sold separately) (or a front camera), rear and blind view (left / right) cameras. Setting of camera type and display switching between 4 cameras can be operated easily via the receiver large screen. AV input is assignable as 4th camera input.

HD Rear / Front Camera Input

The optional CMOS-740HD camera can be connected to the rear or front camera inputs of the receiver, displaying the image in true HD (1280 x 720 pixels) on the large DMX9720XDS screen.

3 year warranty only applies to these units if fitted at Car Audio Centre.


Download image of Kenwood Car Audio DMX9720XDS Click here for Image of Kenwood Car Audio DMX9720XDS
Technical Specification
Monitor Features
  • 10.1” High Definition Display with Capacitive Touch Screen.
  • OCA is used to eliminate the air layer and suppress light reflection and glare.
  • Protective Film with Anti-Glare, Anti-Fingerprint and Anti-Reflection.
  • Variable colour key illumination.
  • Floating Panel Mechanism with 3-way Position Adjustment: Tilt (45° ~ -10°) /
  • Up / Down (fixed by screws) & Forward / Backward (fixed by screws)
  • 3 Display mode: Full(Initial)/Auto(Full/Normal/Regular)/Normal.
  • Screen adjustments: Noon/night brightness, tint, colour, contrast, black & backlight.
  • Dimmer sensor: Manual / Sync.
  • Dimmer level: Auto / On / Off.
  • Screen viewing angle adjustment to provide the best visibility at any viewing angle.
  • NTSC / PAL judge.
  • Display OFF mode.
  • Graphical User Interface

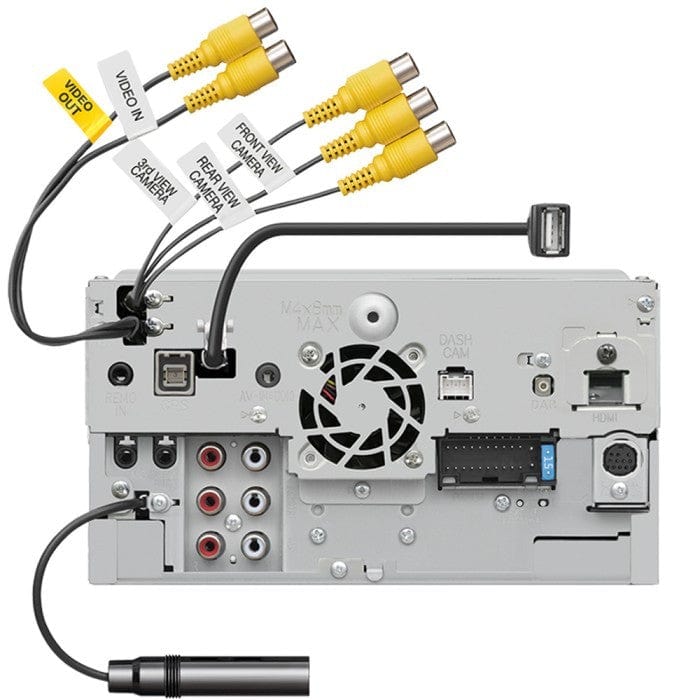

Connectivity:
  • OEM Display Input/Output.
  • Wired steering wheel remote adapter interface ready. (Optional interface needed).
  • Programmable Direct steering wheel remote (resistor ladder type only).
  • (3 Wire: ST REMOTE INPUT 1 / ST REMOTE INPUT 2 / ST REMOTE GND)
  • AV-in (Mini-jack)(Switchable: Camera-in or AV-in), optional CA-C3AV advised.
  • HDMI input.
  • RCA Video-out (source: AV-in or USB).
  • Front Camera Input with mirror function.
  • Rear Camera Input with mirror function.
  • Front & Rear Camera Input are compatible with optional HD camera CMOS-740HD.
  • Multi view camera control line in for optional CMOS-320.
  • DashCam link: Control & Play recorded DashCam movies (with optional DRV-N520).
  • USB2.0, 20cm pig Tail (back-side).
  • 3 RCA’s pre-outs (Front / Rear / Subwoofer).
  • GPS/Glonass antenna input.
  • Speedpuls input wire & Gyro sensor.
  • FM/AM antenna input.
  • DAB antenna input (SMB type).
  • Microphone input for Hands-free microphone: 3,5mm mini-jack.
  • Reverse sensor wire.
  • Parking brake sensor wire.
  • ACC Control wire.
  • Dimmer sensor wire.
  • Power-/Antenna-Control wire.
